How to Replace the Refill on the Monteverde One Touch Stylus Tool Pen

How to Change the Monteverde Tool Pen Refill Change Step 1

Pull Tip Section out of the Barrel of the Pen

We have been asked by our customers how to replace the refill on the Monteverde Tool Pen. We have included a video as well as step by step instructions on how this is done. First select the color and point size from the refill for Monteverde Tool Pen and order your new refill. Once you have your refill for the Monteverde One Touch Stylus Tool Pen follow the simple steps below:

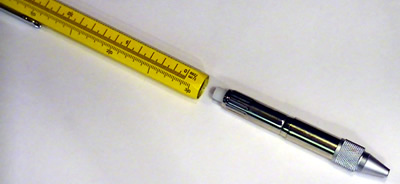

How to Change the Monteverde Tool Pen Refill Step 2

Remove Tip Section from Barrel

Step 1
Remove the tip section from the barrel of the Monteverde Tool Pen. The tip section is a compression fit so simply pull the chrome end straight out of the barrel. Inside the tip section is the refill for the pen.



How To Change Monteverde Tool Pen Refill Step 3

Unscrew the Refill Holder Counter-Clockwise

Step 2
Remove the refill along with the refill holder from the tip section of the pen. The refill holder is a small white plastic piece opposite the writing end of the tip section. To remove the refill holder, unscrew it counter-clockwise. The cool thing is you can use your tool pen phillips screw driver!

How to Change the Monteverde Tool Pen Refill Step 4

Pull the Refill out of the Tip Section

Step 3
Once the refill holder is unscrewed from the tip section simply pull it out along with the attached refill.

How to Change the Monteverde Tool Pen Refill Step 5

Remove the Refill from the Refill Holder

Step 4
Pull the refill holder off the top of the refill and replace with a new refill. The refill holder is a compression fit on the end of the refill for the tool pen.

Step 5
Replace the used refill with a new refill by pressing the refill holder onto the end of the new refill.

Step 6
Insert the new refill with the attached refill holder into the tip section of the pen. Screw the refill holder clockwise into the tip section.

Step 7
Press the tip section back into the barrel section of the pen.

That’s it. You’re done!
